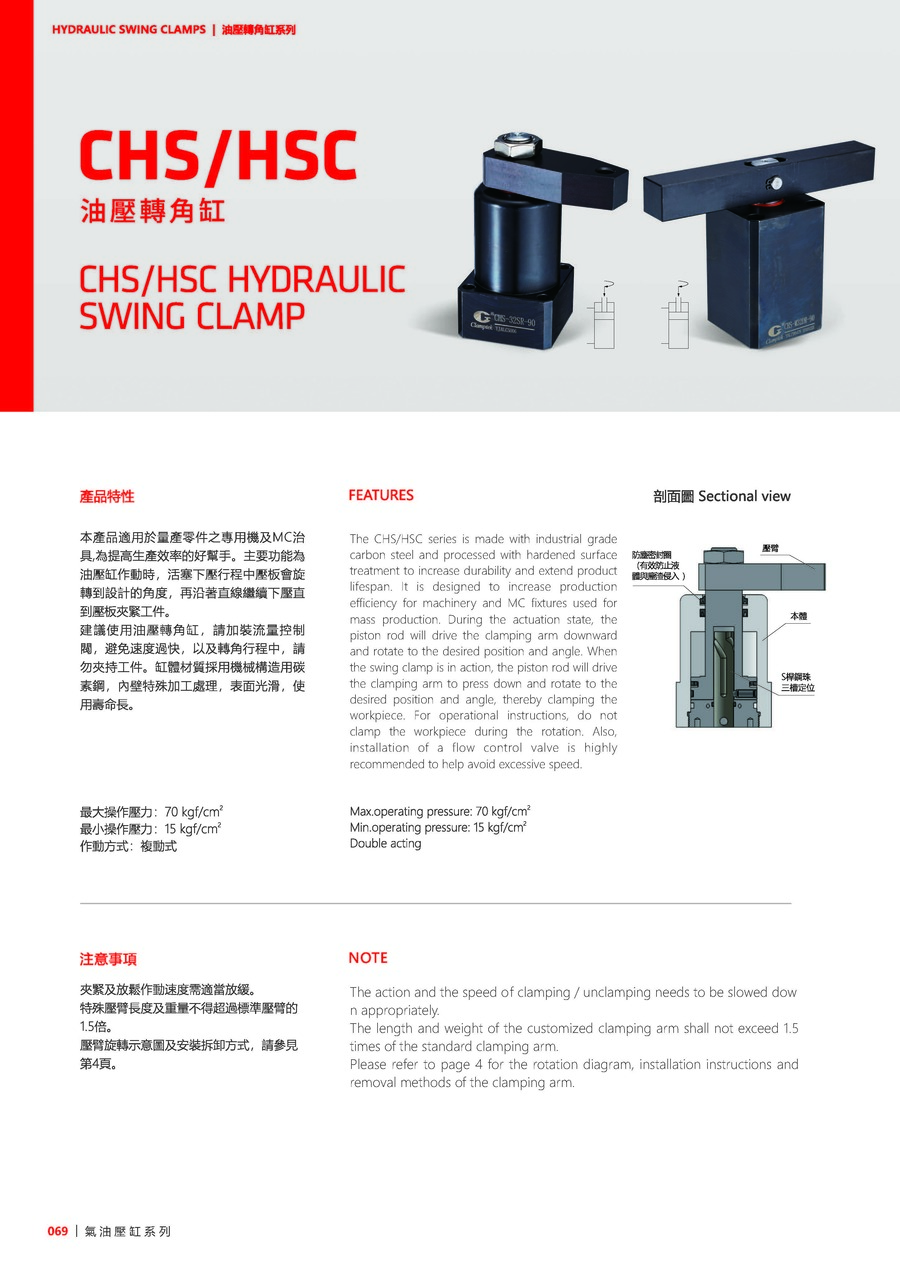

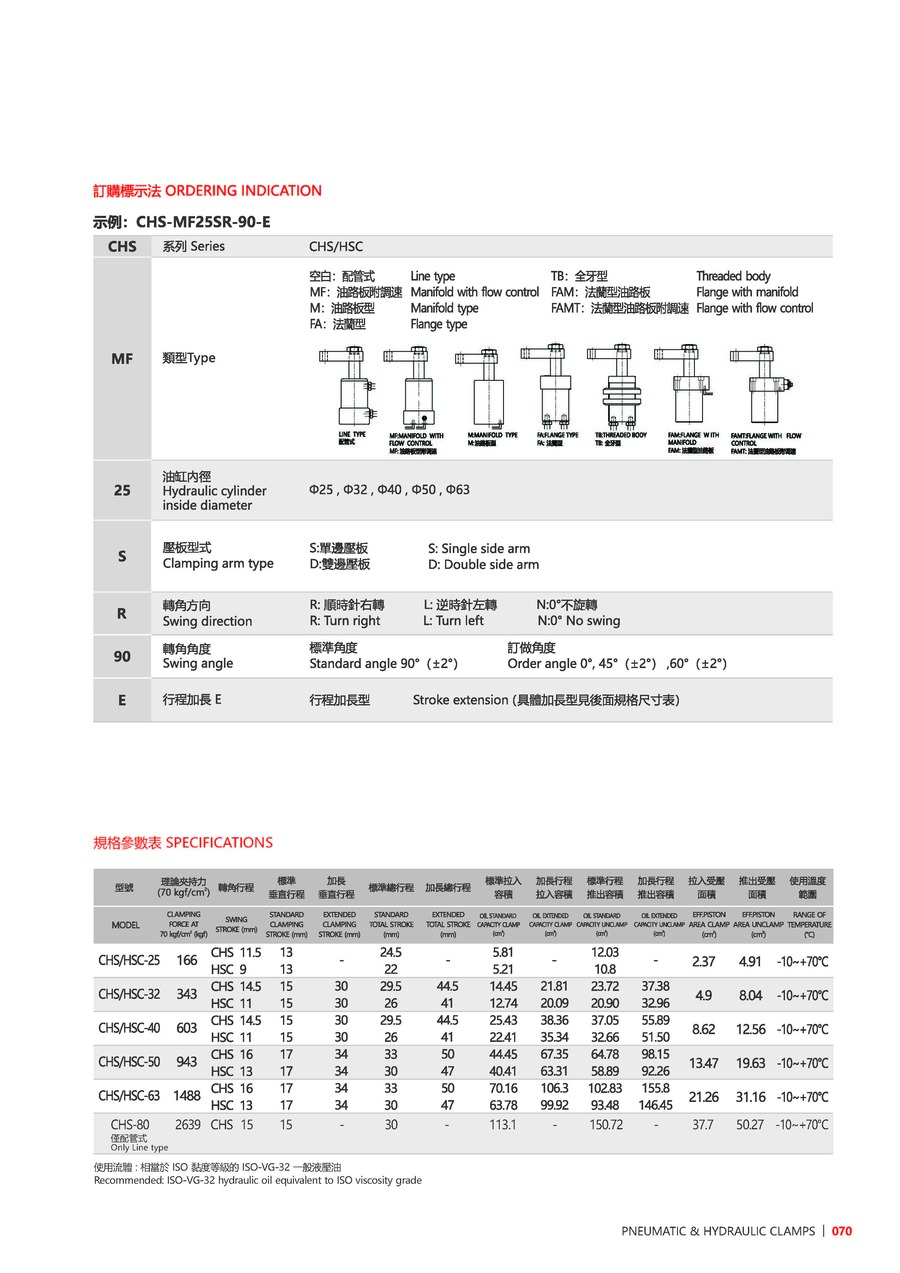

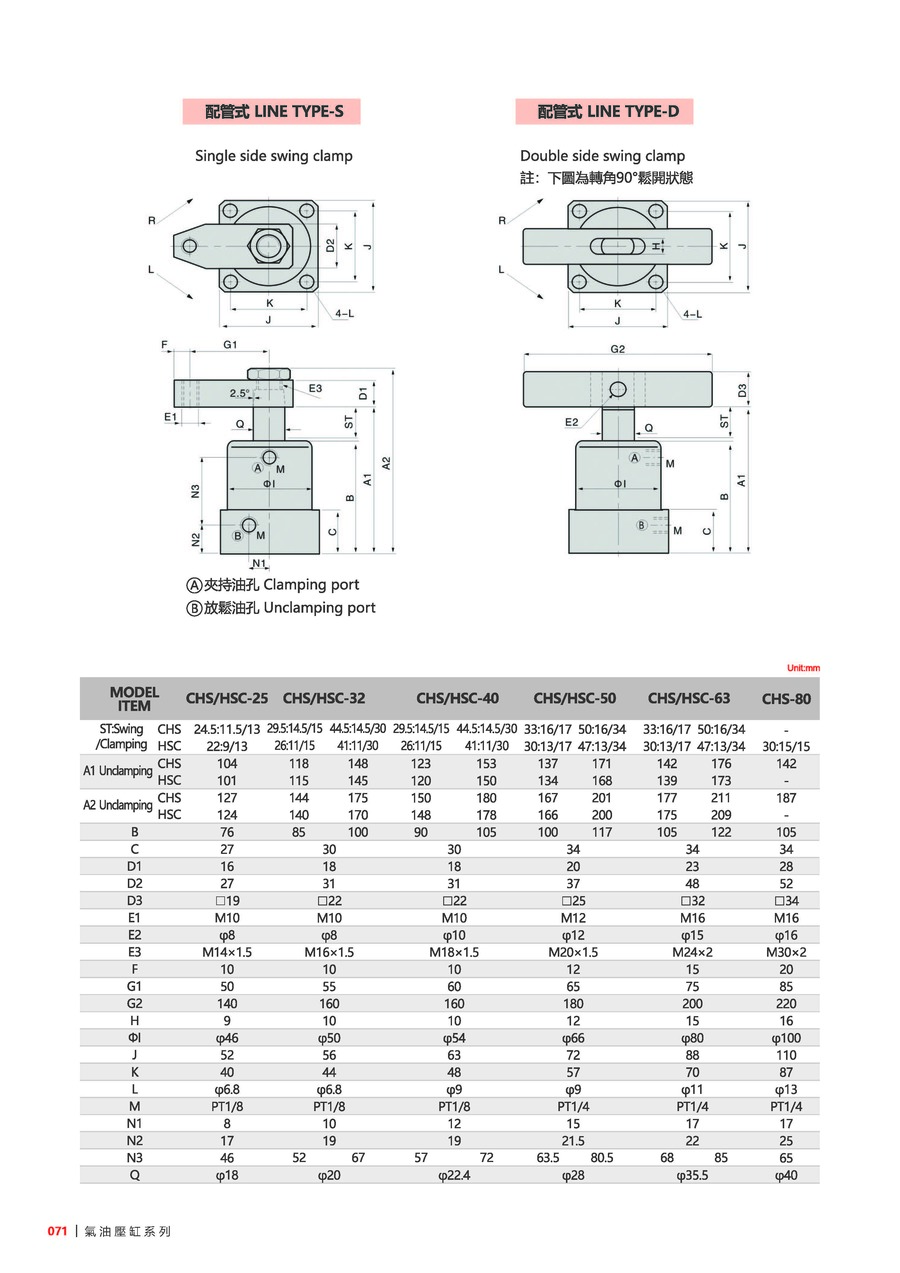

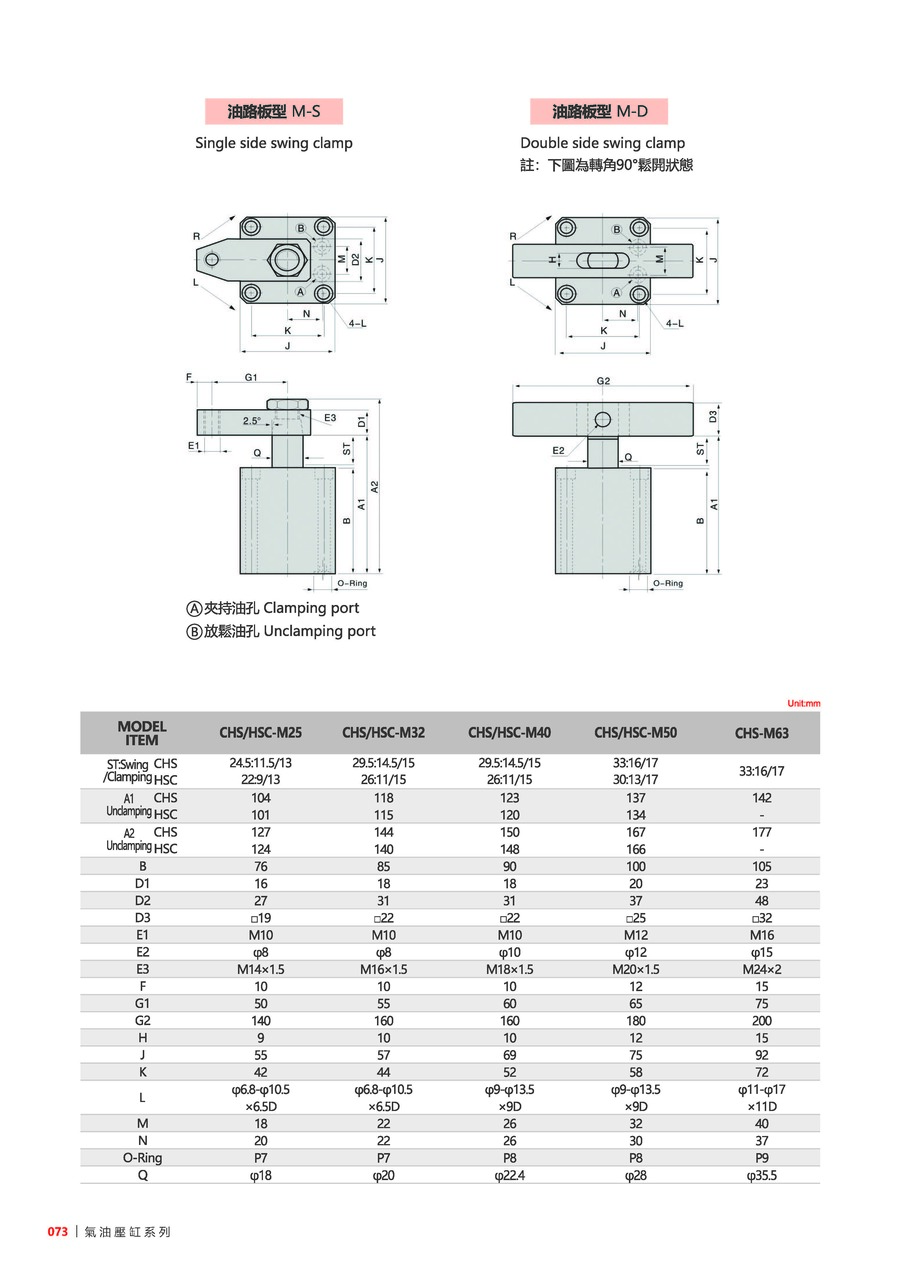

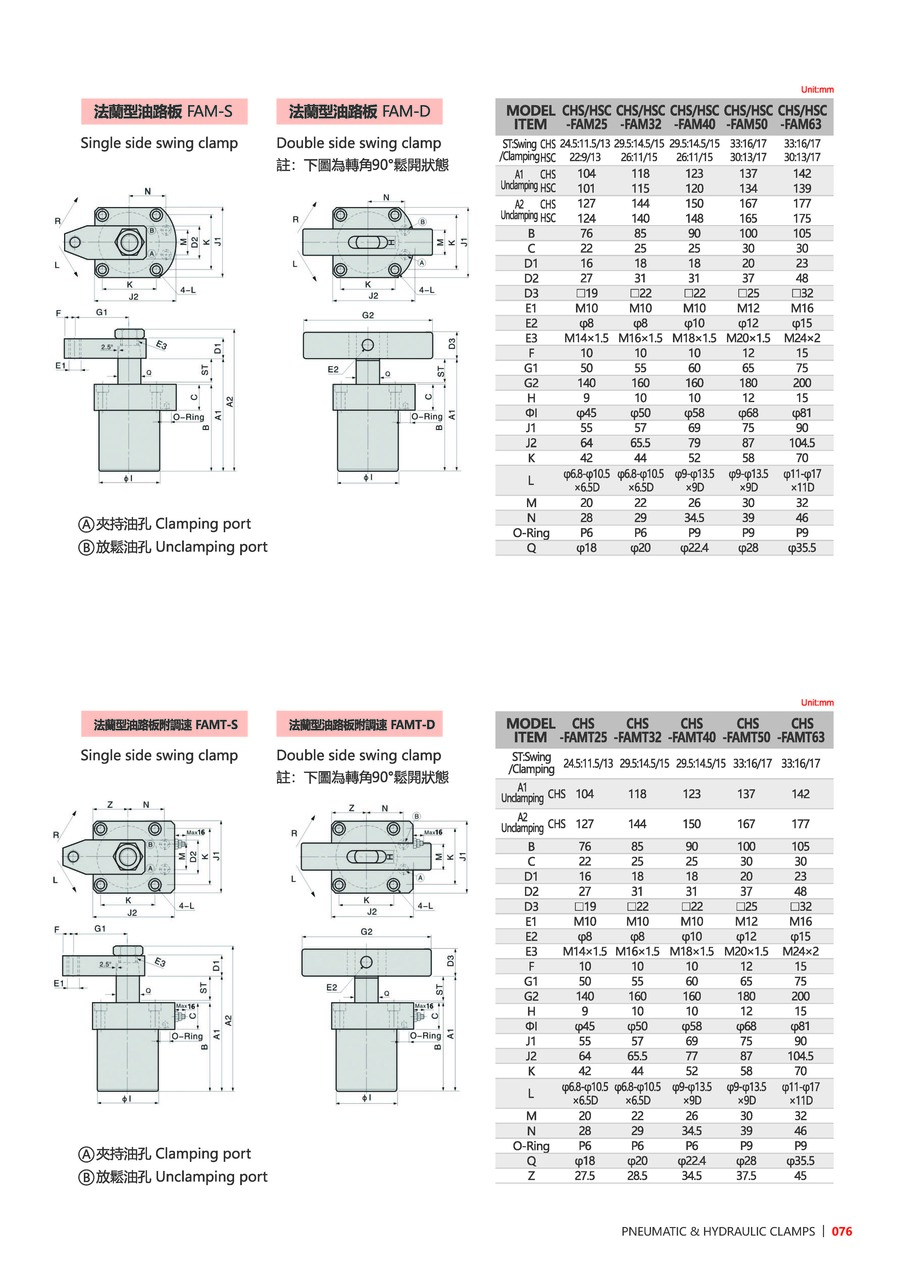

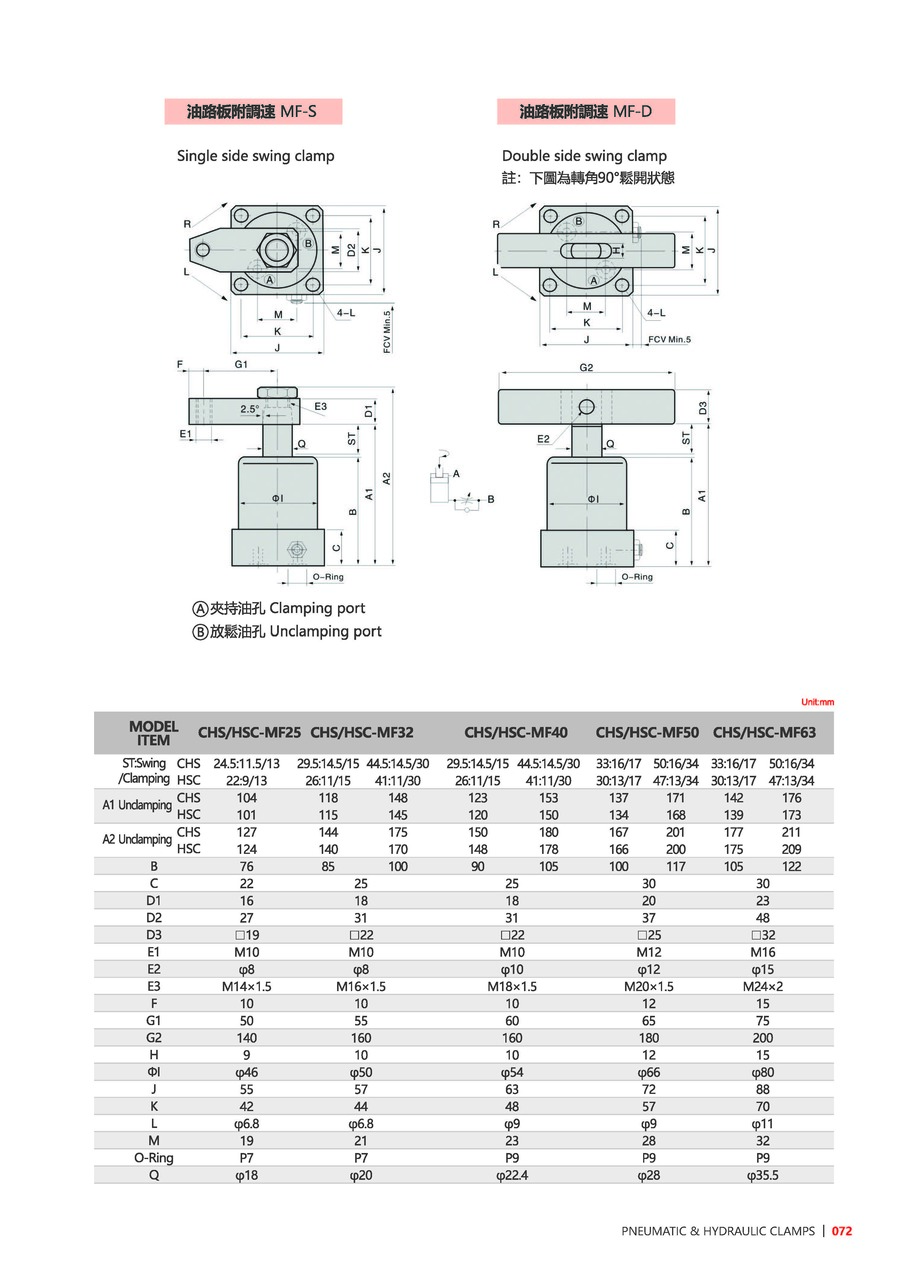

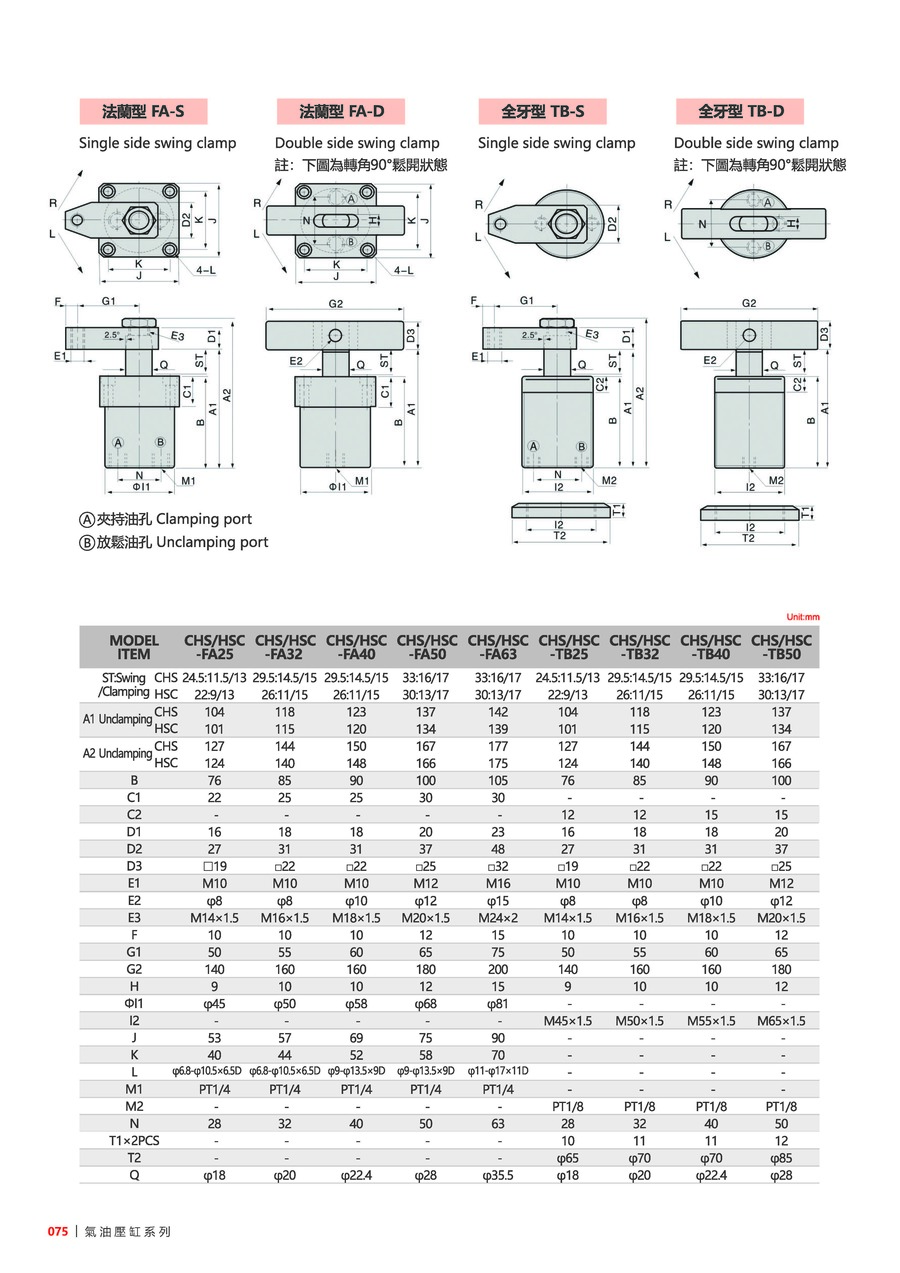

| CHS | ||
|---|---|---|
| MF | ||
| 25 | ||
| S | ||
| R | ||
| 90 | ||
| E |
| 型號 | CHS/HSC-25 | CHS/HSC-32 | CHS/HSC-40 | CHS/HSC-50 | CHS/HSC-63 | CHS-80(僅配管式) |
|---|---|---|---|---|---|---|
| 理論夾持力(70kgf/cm²) | 166 | 343 | 603 | 943 | 1488 | 2639 |
| 轉角行程(mm) | CHS: 11.5, HSC: 9 | CHS: 14.5, HSC: 11 | CHS: 14.5, HSC: 11 | CHS: 16, HSC: 13 | CHS: 16, HSC: 13 | 15 |
| 標準垂直行程(mm) | 13 | 15 | 15 | 17 | 17 | 15 |
| 加長垂直行程(mm) | - | 30 | 30 | 34 | 34 | - |
| 標準總行程(mm) | CHS: 24.5, HSC: 22 | CHS: 29.5, HSC: 26 | CHS: 29.5, HSC: 26 | CHS: 33, HSC: 30 | CHS: 33, HSC: 30 | 30 |
| 加長總行程(mm) | - | CHS: 44.5, HSC: 41 | CHS: 44.5, HSC: 41 | CHS: 50, HSC: 47 | CHS: 50, HSC: 47 | - |
| 標準拉入容積(cm³) | CHS: 5.81, HSC: 5.21 | CHS: 14.45, HSC: 12.74 | CHS: 25.43, HSC: 22.41 | CHS: 44.45, HSC: 40.41 | CHS: 70.16, HSC: 63.78 | 113.1 |
| 加長行程拉入容積(cm³) | - | CHS: 21.81, HSC: 20.09 | CHS: 38.36, HSC: 35.34 | CHS: 67.35, HSC: 63.31 | CHS: 106.3, HSC: 99.92 | - |
| 標準行程推出容積(cm³) | CHS: 12.03, HSC: 10.8 | CHS: 23.72, HSC: 20.90 | CHS: 37.05, HSC: 32.66 | CHS: 64.78, HSC: 58.89 | CHS: 102.83, HSC: 93.48 | 150.72 |
| 加長行程推出容積(cm³) | - | CHS: 37.38, HSC: 32.96 | CHS: 55.89, HSC: 51.50 | CHS: 98.15, HSC: 92.26 | CHS: 155.8, HSC: 146.45 | - |
| 拉入受壓面積(cm²) | 2.37 | 4.9 | 8.62 | 13.47 | 21.26 | 37.7 |
| 推出受壓面積(cm²) | 4.91 | 8.04 | 12.56 | 19.63 | 31.16 | 50.27 |
| 使用溫度範圍(°C) | -10~+70°C | -10~+70°C | -10~+70°C | -10~+70°C | -10~+70°C | -10~+70°C |
